TURBOCHARGERS
FOR VR4/EVO1-3 |
| |
EVOIII
TD05H-16G6 |
|
 |
EVOIII TD05H-16G6 with enlarged entry
turbine housing and 34mm wastegate flapper. Comes complete with
full gasket kit ($49.00 value).
The horse power range
for these turbo's is around 380HP
$1250.00
|
 |
 |
These are a
direct bolt on for Mitsubishi VR4 RS and Lancer EVOI-II-III.
Oz spec VR4's will require enlarging the exhaust manifold turbo
flange hole to take advantage of the extra flow available from
this turbo. This is not a big job it can be done by hand with
a die grinder,etc or an EVOIII exhaust manifold can be used |
 |
| This dyno
sheet shows the EVO3 big16G performance as fitted to a Cordia
with stock VR4 engine, 3” exhaust and Haltech E6 at 16psi. |
 |
|
|
EVOIII
TD05H-20G |
As pictured above
but with 20G compressor wheel.
The horsepower range
for this turbocharger is around 400HP
$1350.00
|
|
This
dyno sheet shows the EVO3 20G performance as fitted to a VR4
with stock engine running 20psi boost with the following supporting
mods:
- ECU microtech
- GTpumps EVO3 style exhaust manifold
- 750 cc injectors
- Fuel Pump ( walbro )
- FMIC
- GReddy EBC
- 3 inch exhaust
|
 |
|
|
EVOIII
TD06SL2-20G |
 |
The
ultimate EVO3 features the special 11 blade TD06SL2 turbine wheel
and 20G compressor wheel. This turbo is special order only contact
us for more information.
This turbo is perfect
for 2.3 litre stroker engines. The horsepower range for this
turbocharger is around 420HP @ 24psi
$1450.00
|
|
This
turbo offer excellent performance for customers wishing to retain
stock external appearance. This dyno sheet shows the EVO3 20G
TD06SL2 performance as fitted to a EVO3 with a stroker engine
with the following supporting mods:
- chipped ECU
- FP EVO3 style exhaust manifold
- 750 cc injectors
- Fuel Pump ( walbro )
- HKS FMIC
- Turbosmart boost controller
- 3 inch exhaust
- HKS RS suction kit
|
|
20G enhanced
EVO3 TD05H turbo exchange program.
Send
us your VR4 or EVO1-3 turbocharger and we will send you
back a GTpumps enhanced EVO3 20G !!! NOTE:
core must be in rebuildable condition otherwise additional
cost will be incured
$POA**
|
|
|
TURBOCHARGERS
FOR EVO4-9 |
EVO8MR/RS TD05HRA-16G6-10.5 titanium turbo
These have the titanium TD05HRA turbine wheel.
Comes complete with turbo gasket kit and dump stud kit. Direct bolt on upgrade to EVO4-8
MHI p/n 49378-01550
SOLD OUT!
(limited stocks)
|
 |
 |
|
EVO9 TD05HRA-16G6 10.8cm titanium turbo
EVO9 "TME" turbochargers available, these have the titanium TD05HRA turbine wheel
and our 10.8cm turbine housing Comes complete with turbo gasket kit.
Note: Fitting kit required for EVO4-8.
$1800.00
(very limited stocks)
|
 |
 |
|
|
BOLT
ON EVO4-9 20G TURBO UPGRADE!
GTpumps
EVO9-20G-LT (large turbine)
|
 |
Our EVO9-20G-LT features
our second generation 20G compressor wheel and upgraded larger
eleven blade turbine wheel. This turbo features lower backpressure
and increased compressor flow. Note: we can also upgrade your
EVO9 and EVO4-8 turbo to this spec.
Brand
new $1999.00
Exchange
upgrade $1620.00 (EVO9 only)
|
 |
Housing are
machined inhouse on our 4 axis CNC.
|

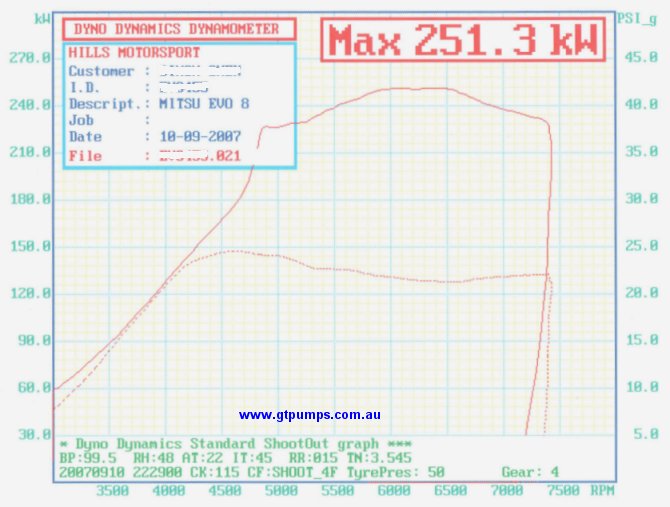

GTpumps EVO9 20G TD06SL2 dyno sheet 251.3kw @ 22psi.
Test car is a stock EVO8 with full 3" exhaust (including Invidia dump), Walbro, Ralliart leads
and stock ECU(reflash). Manual boost control and Shell Vpower100.
Turbo install and tune by Meek Automotive.
See this turbo in action on our 400HP EVO6
|
|
 |
THE
ULTIMATE EVO BOLT ON TURBO UPGRADE!
GTpumps
EVO9 73HTA turbocharger. Billet 73HTA compressor wheel and 10.8cm
turbine housing
|
|
Our EVO9 73HTA turbo
features a 54lb/min billet compressor wheel, new design
80mm compressor housing, new 10.8cm turbine housing and larger turbine wheel.
This turbo delivers lower back pressure and increased compressor
flow.
Price
$2400.00
|
 |
 |
GTpumps EVO9
73HTA dyno sheet 265.6kw @ 24.5psi. Test car is a EVO8 with full 3" exhaust, Walbro,
M&W COP CDI, Meek intercooler piping kit, Plazmaman intercooler,
Camtech cams, Insight Motorsport Clubsprint exhaust manifold
and reflash. United 100 octane fuel. Turbo install by Meek Automotive tune by GTpumps.
GTpumps EVO9 73HTA
dyno sheet 300.8kw @ 25psi. Test
car is a EVO9 with full 3" exhaust, twin Walbro, Plazmaman
inlet manifold, Full Race manifold, Camtech cams. E85 fuel.
Turbo install by Bel Garage tune
by Insight Motorsport.
|
|
| |
|
|
|
TURBOCHARGERS FOR EVOX |
|
20G upgrade coming soon! |
 |
 |
| |
