TURBOCHARGERS FOR VR4/EVO1-3

 GTpumps EVOIII TD05H-16G or TD05H-1610ET



  EVOIII TD05H-16G6 with enlarged entry turbine housing and 34mm wastegate flapper. Comes complete with full gasket kit ($49.00 value).

The horse power range for these turbo's is around 380HP

$1250.00 cast 16G

$1350.00 billet 1610ET





 These are a direct bolt on for Mitsubishi VR4 RS and Lancer EVOI-II-III. Oz spec VR4's will require enlarging the exhaust manifold turbo flange hole to take advantage of the extra flow available from this turbo. This is not a big job it can be done by hand with a die grinder,etc or an EVOIII exhaust manifold can be used

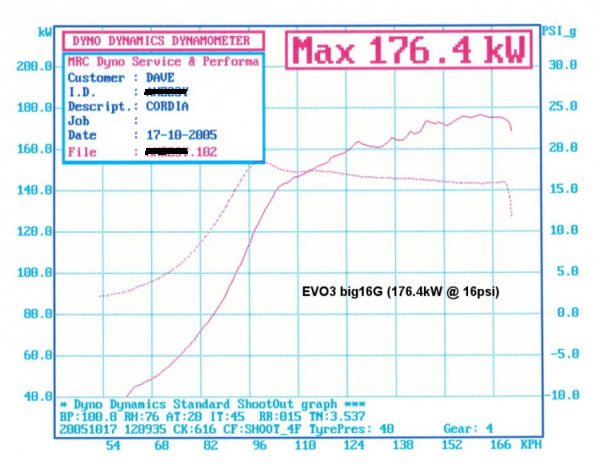

 This dyno sheet shows the EVO3 big16G performance as fitted to a Cordia with stock VR4 engine, 3” exhaust and Haltech E6 at 16psi.



 GTpumps EVOIII TD05H-20G or TD05H-2010ET



The horsepower range for this turbocharger is around 400HP

$1350.00 with cast 20G compressor wheel

$1450.00 with billet 2010ET compressor wheel

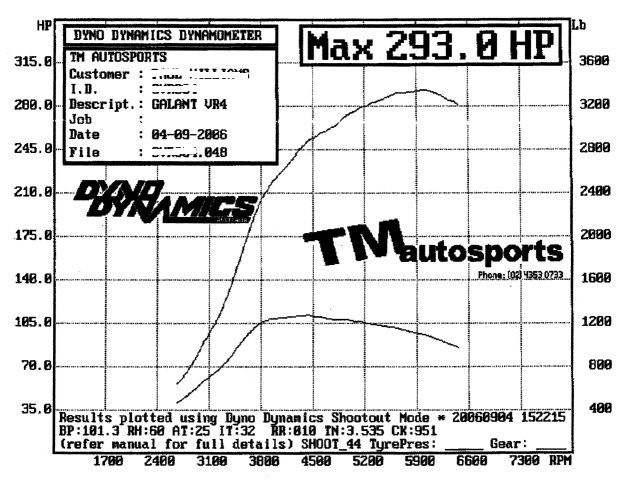

This dyno sheet shows the EVO3 20G performance as fitted to a VR4 with stock engine running 20psi boost with the following supporting mods:

- ECU microtech
- GTpumps EVO3 style exhaust manifold
- 750 cc injectors
- Fuel Pump ( walbro )
- FMIC
- GReddy EBC
- 3 inch exhaust



 GTpumps EVOIII TD06SL2-20G or TD06SL2-2010ET



 This EVO3 turbo features the 11 blade TD06SL2 turbine wheel and 20G compressor wheel.

This turbo is perfect for 2.3 litre stroker engines. The horsepower range for this turbocharger is around 420HP @ 24psi

$1450.00 cast 20G compressor

$1550 billet 2010ET compressor

This turbo offer excellent performance for customers wishing to retain stock external appearance. This dyno sheet shows the EVO3 20G TD06SL2 performance as fitted to a EVO3 with a stroker engine with the following supporting mods:

- chipped ECU
- FP EVO3 style exhaust manifold
- 750 cc injectors
- Fuel Pump ( walbro )
- HKS FMIC
- Turbosmart boost controller
- 3 inch exhaust
- HKS RS suction kit

  20G/2010ET enhanced EVO3 TD05H turbo exchange program.

  Send us your VR4 or EVO1-3 turbocharger and we will send you back a GTpumps enhanced EVO3 20G !!! NOTE: core must be in rebuildable condition otherwise additional cost will be incured

 $POA**
NOTE: Now using billet 2010ET compressor wheel
GTpumps EVOIII TD06H-762GTP

This EVO3 turbo features the special TD06HS turbine wheel and billet 762GTP compressor wheel.

Note: This turbo requires custom fitment please contact us for details

$POA
