TURBOCHARGERS FOR EVO4-9

GTpumps EVO9-20G-LT (large turbine)



 Our EVO9-20G-LT features our second generation 20G compressor wheel and upgraded larger eleven blade turbine wheel. This turbo features lower backpressure and increased compressor flow. Note: we can also upgrade your EVO9 and EVO4-8 turbo to this spec.

NOTE: This turbo has been replaced by the 73HTA.

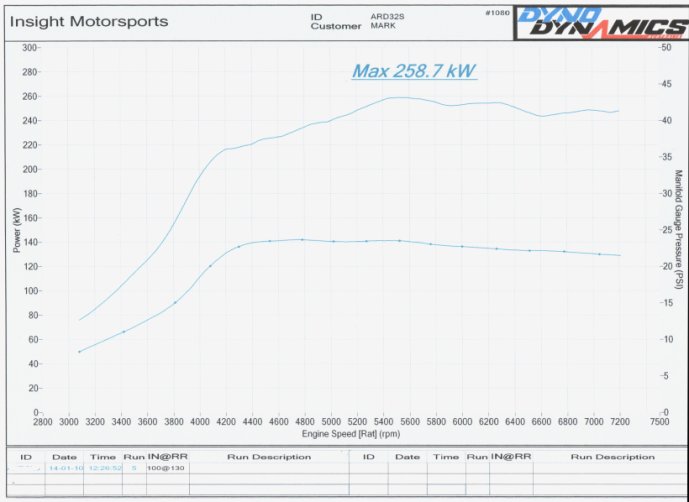

GTpumps EVO9 20G TD06SL2 dyno sheet 258.7kw @ 22psi.
Test car is a stock EVO6TME with full 3" exhaust, Walbro, 272 Cams
and ECU7 ECU reflashed. Manual boost control and Shell Vpower100.

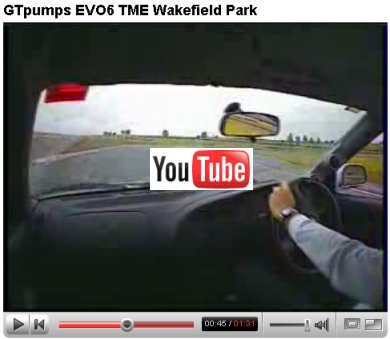

See this turbo in action on our 400HP EVO6

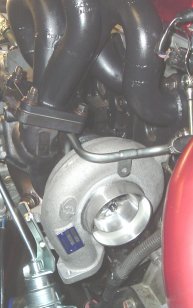

 GTpumps EVO9 73HTA Turbocharger

Billet 73HTA compressor wheel and 10.5cm turbine housing

Our EVO9 73HTA turbo features a 54lb/min billet compressor wheel, 84mm compressor housing, 10.5cm turbine housing and larger turbine wheel. This turbo is great for 2.0 litre engines.

NOTE: This turbo has been replaced by the 712GTP.

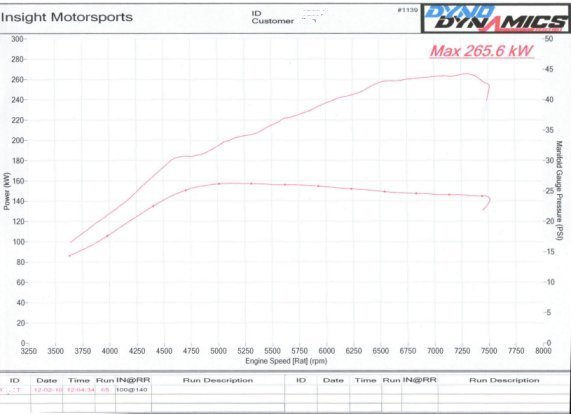

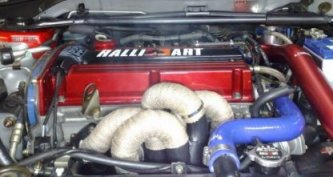

 GTpumps EVO9 73HTA dyno sheet 265.6kw @ 24.5psi. Test car is a EVO8 with full 3" exhaust, Walbro, M&W COP CDI, Meek intercooler piping kit, Plazmaman intercooler, Camtech cams, Insight Motorsport Clubsprint exhaust manifold and reflash. United 100 octane fuel. Turbo install by Meek Automotive tune by GTpumps.

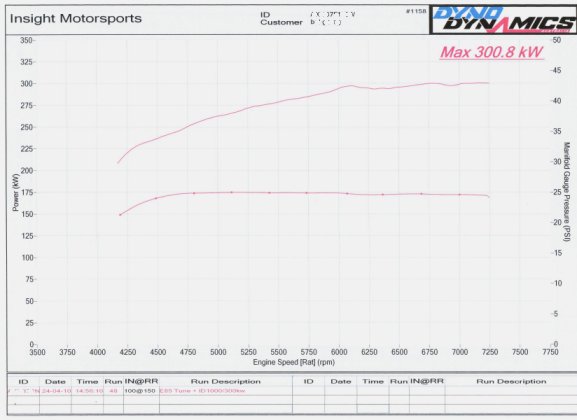

GTpumps EVO9 73HTA dyno sheet 300.8kw @ 25psi. Test car is a EVO9 with full 3" exhaust, twin Walbro, Plazmaman inlet manifold, Full Race manifold, Camtech cams. E85 fuel. Turbo install by Bel Garage tune by Insight Motorsport.
GTpumps EVO9 G2 712GTP Turbocharger

Billet 712GTP compressor wheel and 10.5cm turbine housing

Our EVO9 G2 712GTP turbo features a billet compressor wheel, 10.5cm turbine housing and larger turbine wheel. This turbo delivers lower back pressure and increased compressor flow great for stock and modified 2.0 litre engines. Note: this turbo has stock intake size. Comes with Turbosmart actuator.

Price $2420.00

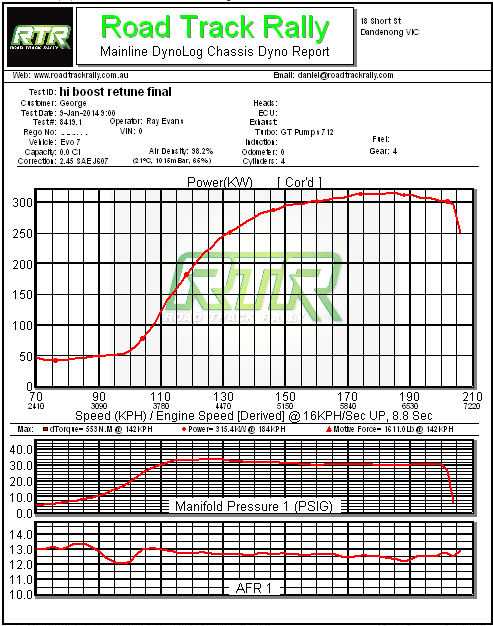

Dyno sheet below shows EVO7 2.0 litre running E85 fuel.

GTpumps EVO9 762GTP Turbocharger

GTpumps EVO9 762GTP turbocharger. Billet 762GTP compressor wheel, 10.5cm turbine housing and 82mm intake anti-surge cover



Our EVO9 762GTP turbo features a 62lb/min billet compressor wheel, high flow 82mm compressor housing, 10.5cm turbine housing and larger turbine wheel. This turbo delivers lower back pressure and increased compressor flow great for 2.2 and 2.3 litre strokers. Note: this turbo requires 82mm intake. Comes with Turbosmart actuator.

Price $2550.00

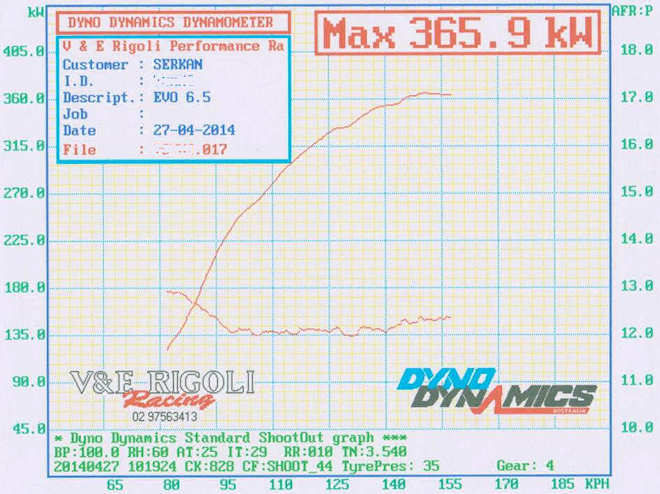

GTpumps EVO9 762GTP dyno sheet 365.9kw @ 28psi. Test car is a EVO6 2.3 built engine with GSC R2 cams with E85 fuel.
THE ULTIMATE STOCK FRAME EVO9 TURBO!

GTpumps EVO9 822GTP turbocharger. Billet 822GTP compressor wheel, 10.5cm turbine housing and 82mm intake

Our EVO9 822GTP turbo features a 70lb/min billet compressor wheel, high flow 82mm compressor housing, 10.5cm turbine housing and larger turbine wheel. This turbo delivers lower back pressure and increased compressor flow great for 2.2 and 2.3 litre strokers. Note: this turbo requires 82mm intake. Comes with Turbosmart actuator.

Price $2495.00

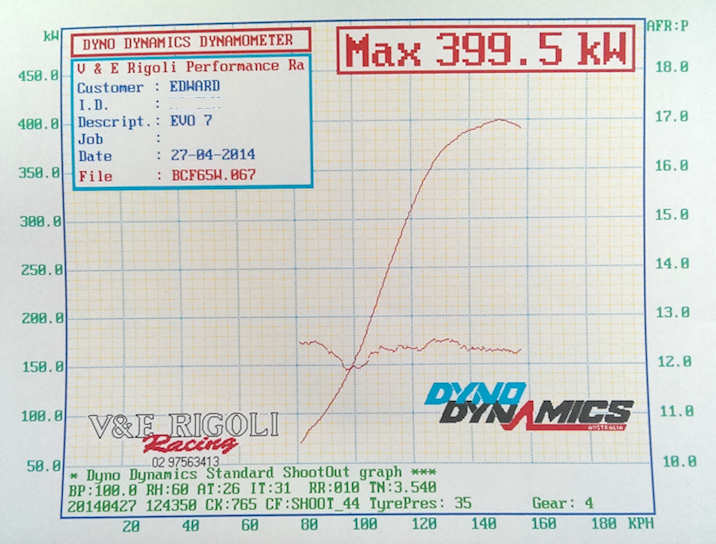

GTpumps EVO9 822GTP dyno sheet 399.5 kw @ 32psi. Test car is a EVO7 stroker built engine with E85 fuel. Tune/dyno by V&E Rigoli.
